With HEUI no high pressure fuel pump is necessary. While this injection technology developed by Caterpillar is considered outdated today it was thought of as a modern marvel when it was introduced in 1994. Ford 60L Powerstroke Diesel Injectors. Ford didnt have anything to do with HEUIThey just contracted with International to supply them with an engine for their F-series. HEUI systems were the first modern injection system that could pressurize fuel independently from engine RPM. HEUI was designed by Caterpillar to deliver better fuel economy in large diesel engines. A close look at the HEUI System The HEUI fuel system consists of four basic components.

I understand the basics of HEUI injection.

Ford didnt have anything to do with HEUIThey just contracted with International to supply them with an engine for their F-series. All fuel systems for diesel engines use a plunger and barrel in order to pump fuel under high pressure into the combustion chamber. The HEUI system uses engine oil highly pressurized to inject fuel into the cylinders. International and was introduced in 1993. A close look at the HEUI System The HEUI fuel system consists of four basic components. There was a 73 Non turbo Indirect injected IDI a Turbo IDI and the coveted 73 Powerstroke Direct Injected Turbo Diesel.

7 3 Powerstroke Diesel Heui Fuel Injection Diesel Trucks Powerstroke Diesel Fuel

Ford heui injection system. Moreover how does heui injection work. HUI-100 HEUI Test Bench Added-on HEUI Tester The HEUI test bench is designed to test up to four HEUI injectors which are equipped on the following engines. HEUI was a joint venture between Caterpillar and Navistar ie.

All fuel systems for diesel engines use a plunger and barrel in order to pump fuel under high pressure into the combustion chamber. There was a 73 Non turbo Indirect injected IDI a Turbo IDI and the coveted 73 Powerstroke Direct Injected Turbo Diesel. Despite the engine being more outdated than some of the newer options it has experienced very few issues and is known for its reliability and quiet operating sound.

This design improves fuel efficiency emits harmful emissions and reduces noise. In the case of an HEUI injector the input pressure is the oil pressure in the high pressure oil system and the output pressure is the pressure of diesel fuel in the injector body. The pressure of the incoming oil 800 to 3300 psi controls the rate of injection while the.

That became possible because of the Siemens K16 VDO fuel injection pump. A close look at the HEUI System The HEUI fuel system consists of four basic components. Instead the machine uses a common-rail injection system unlike the 60 Powerstroke diesel engine.

How HEUI Injectors Work. The injection pressure regulator controlled by the PCM is responsible for creating injection pressures in a range of 450 to 3000 psi on 73L engines and 450 to 3600 psi on 60L Power Strokes. The International version was known as the T444E.

In HEUI engines fuel delivered to the injectors is controlled by an Electronic Control Module ECM while an oil pump forces the engine oil at pressures of up to 4000 PSI. Inherent features of the HEUI Fuel System include injection pressure control independent of engine load or speed totally flexible injection timing and full electronic control of injection parameters. This Hydraulic Electronic Unit Injector HEUI requires no mechanical actuating or mechanical control devices and offers many advantages over conventional fuel injection systems.

Specific diagrams of what component locations etc etc. As previously mentioned in 1993 Caterpillar developed the HEUI injection system and International under license from Caterpillar created the Powerstroke engine for Ford.

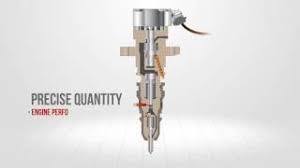

How Heui Injectors Work

How Heui Injectors Work

11 Things You Need To Know About Heui Drivingline

Heui How High Pressure Oil Injection Systems Work

Heiu Injector Problems Solutions For Ford 6 0l 7 3l Powerstroke

Performance Roadblocks Of The 7 3l Power Stroke Drivingline

Electronic Fuel Injection Systems For Heavy Duty Engines

Heui Y Eui Fuel System Youtube

Diesel Nozzle Diesel Plunger Head Rotor Diesel Injection Common Rail Nozzle Diesel Parts

Electronic Fuel Injection Systems For Heavy Duty Engines

China Added On Heui Injector Tester China Heui Injector Tester Heui Tester

Electronic Fuel Injection Systems For Heavy Duty Engines

11 Things You Need To Know About Heui Drivingline

Amazon Com Heui Injector For Ford 7 3 Powerstroke Or International T444e Automotive

Experimental Study Of Hydraulic Electronic Unit Injector In A Hydraulic Free Piston Engine Sciencedirect

Unit Injector Testing Heui And Eui In Surrey Nw Fuel

Project Paw Paw Part 3 Drivingline

Heui Injector System Test Bench Heui System Test Bench Heui Test Bench Heui Injector Test Bench Heui Test Bench Heui Test Bench Heui

Heui How High Pressure Oil Injection Systems Work Information Only Not A Part Blackclouddiesel Com

Ford 6 0l Powerstroke Diesel Injectors Know Your Parts

Hydraulic Electronic Unit Injection Heui Youtube

Electronic Fuel Injection Systems For Heavy Duty Engines

Heui Injector System Test Bench Heui System Test Bench Heui Test Bench Heui Injector Test Bench Heui Test Bench Heui Test Bench Heui

1

China Hui 100 Added On Heui Injector Tester C7 C9 Navistar For Ford Engine China Heui Injector Tester Heui Tester

Heui Test Bench Heui System Test Bench Heui Tester For Cat C7 C9 Ford 6 0l Heui Injector

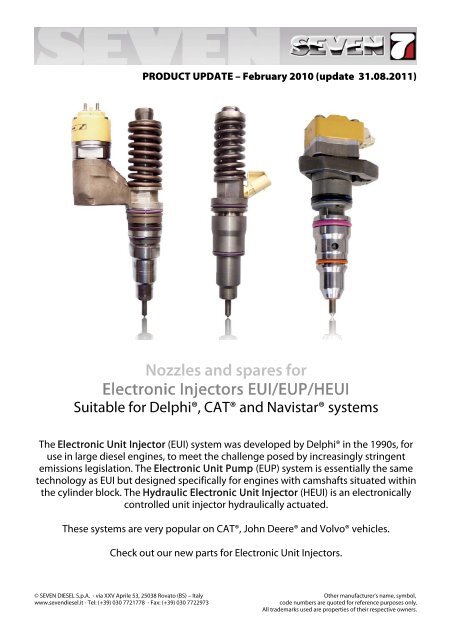

Eui Heui Injector Seven Diesel Spa

Buy 1994 2003 Ford 7 3l Power Stroke F Series Excursion E Series Heui Injector Seal Kit Pack Of 8 Kits Online In Turkey B00hzqw7dk

Electronic Unit Injector At Diesel Engine Troubleshooting

Electronic Fuel Injection Systems For Heavy Duty Engines

Unit Injector Wikipedia

China Hui 100 Added On Heui Injector Tester C7 C9 Navistar For Ford Engine China Heui Injector Tester Heui Tester

Ford 7 3l And Navistar T444e Power Stroke Heui Injectors Disa

Ford 6 0l Injector Nozzle Replacement Savannah Georgia

Parts For Unit Injectors System Ford Powerstroke Navistar Parts For Unit Injectors Parts For Injector Pumps Type Eui Pde Eup Pld Heui Star Diesel

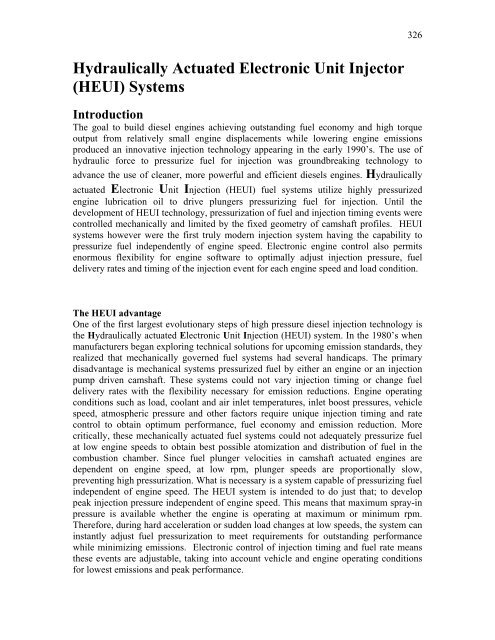

Hydraulically Actuated Electronic Unit Injector Heui Systems

Heui Systems Youtube

Fotma 12psdw Heui Injector Test Bench For Testing 3126 C7 C9 China Heui Test Bench Heui Injector Test Bench Made In China Com

11 Things You Need To Know About Heui Drivingline

Heui Fuel Injection Failure And Solution The Documented

Heui Fuel System Pdf In 2021 Diesel Powerstroke Engine Rebuild Kits

Ford 6 0 Injectors With Warranty Ford 6 0 Injector Replacement

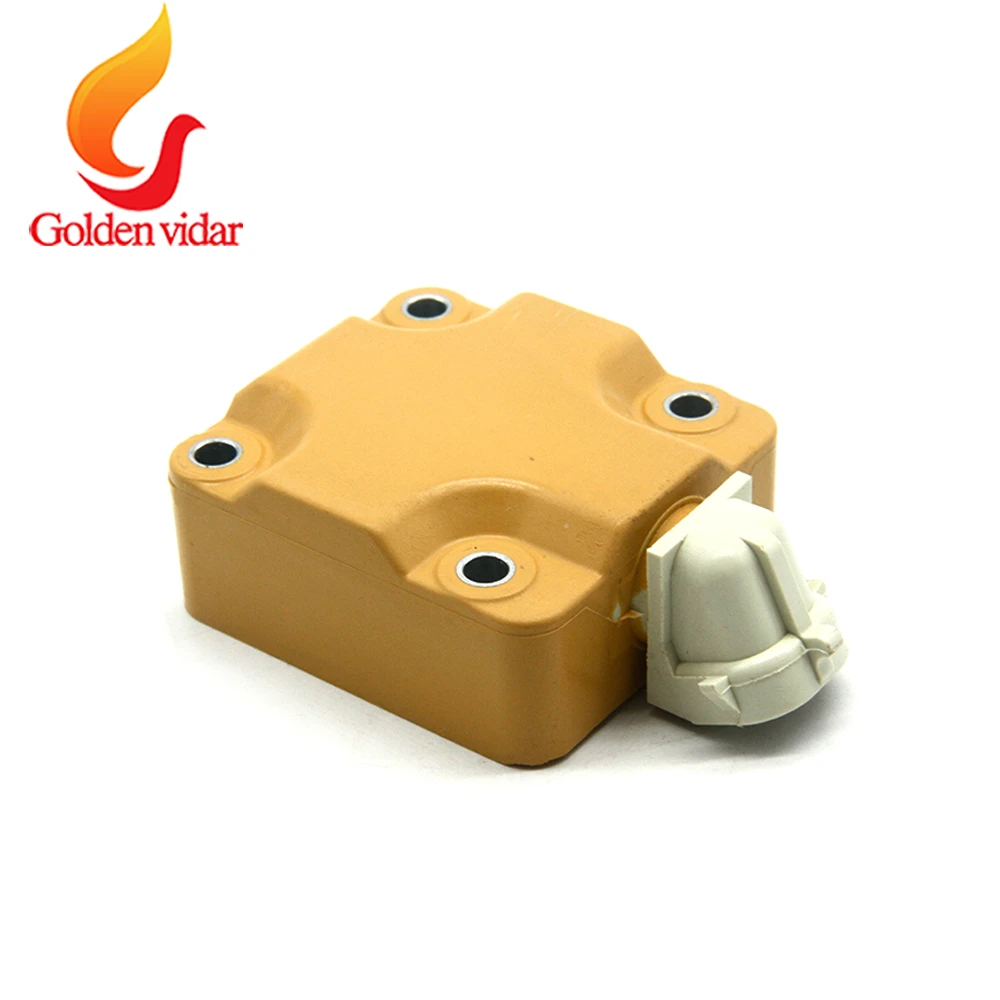

Cat 3126b E Heui Solenoid Valve Imported From America For Ford Powerstroke 7 3l Navistar Heui Dt466 I530e Dt466 530 Ht530 Fuel Inject Controls Parts Aliexpress
